Hubbell Wiring S1PT4X4ALJ

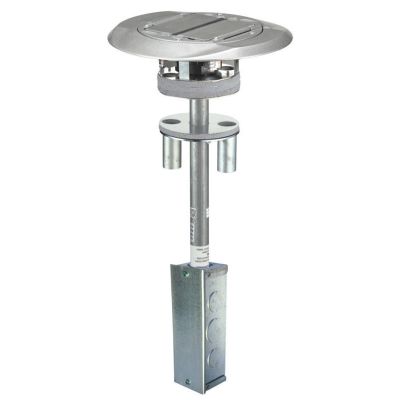

PREMISE WIRING ScrubShield SystemOne S1PT4X4ALJ 1-Piece Flush Standard Poke-Through Unit With Junction Box, 4 in Hole, 1 Gangs, Composite
Floor Boxes
7019827
S1PT4X4ALJ
Hubbell Wiring
$0.00
/ ea
- Color: Aluminum
- Cover Material: Die Cast Aluminum
- Depth: 12-17/32
- Device Type: 125 VAC 20 A Receptacle/Fire Rated
- Hole Size: 4
- Knockout Size: 1/2 to 1-3/4
- Length: 8
- Material: Composite
- Number of Gangs: 1
- Suitable For Use With: Through/In-Floor Delivery System
- Type: 1-Piece Flush Standard
- Width: 8
PREMISE WIRING ScrubShield SystemOne Poke-Through Unit, 1-Piece Flush Standard, 4 in Hole, 1/2 to 1-3/4 in Knockout, 1 Gangs, 125 VAC 20 A Receptacle/Fire Rated Device, 8 in Length, 8 in Width, 12-17/32 in Depth, For Use With: Through/In-Floor Delivery System, Die Cast Aluminum Cover, Composite, Aluminum
- Features
- Step down installation clips allow the fitting to be installed or removed from the floor above
- Fire barrier expands during fire conditions to maintain the floor's fire rating
- Adjustable lower fire barrier accommodates concrete floor thicknesses from 2-1/4 to 7 in
- Oversized EMT conduit tubes for increased cable capacity
- Accepts all Hubbell® SystemOne covers and sub plates
- Excellent solution for retrofit and new construction
- Delivers power, voice, data and multimedia
- UL listed for use in 1 to 4 hr fire rated floors at 100% rated fill
- UL installation spacing minimum 2 feet on center, not more than one per 65 sq-ft of floor area in each span
- Flush connection type
- 2-1/2 in over metal deck minimum thickness
- 300 lb static load through 3 in Dia mandrel
- (1) 1 in top, (1) 3/4 in bottom, (2) 1/2 in, 1-3/4 in side knockout
