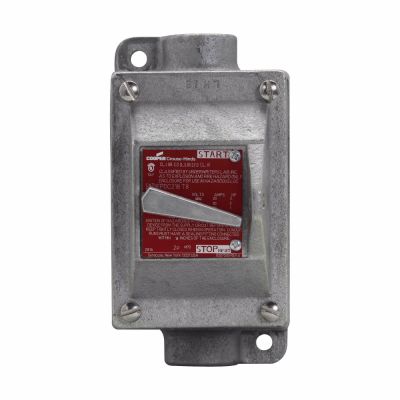

Eaton Crouse-Hinds EFDC2419
Crouse-Hinds EFDC2419 1-Gang Explosionproof Circuit Breaker With Switch, 240/600 VAC, 20/30 A, 3 Poles, Thermal Magnetic Trip
Circuit Breakers
7153489
EFDC2419
Eaton Crouse-Hinds
$0.00
/ ea
- actuator type: Handle
- Amperage Rating: 20/30
- Connection Type: Bolted/Ground Joint/Feed-Through
- Dimensions: 3-1/2 in W x 4-7/8 in D x 6-3/32 in H
- Enclosure Type: NEMA 3/7B/7C/7D/9E/9F/9G/12
- Finish: Aluminum Acrylic Painted/Electro-Galvanized
- Frame: QOU
- Material: Feraloy® Iron Alloy
- Mounting Type: Flush/Wall
- Number of Poles: 3
- Power Rating: 1 hp, 2 hp, 3 hp
- Series: EFD
- Trip Type: Thermal Magnetic
- Type: 1-Gang Explosionproof
- Voltage Rating: 240/600
Eaton Crouse-Hinds series EFD manual motor starter switch, 20A/30A, With switch, 7.5 HP/15 HP, General Electric starter, Feraloy iron alloy, Single-gang, Three-pole, Through feed, 3/4", 240/600 Vac
- Features
- Accurately ground flange on both body and cover for flametight joint
- Switch can be padlocked in either on or off positions
- For manual starting of small AC or DC motors
- In locations made hazardous due to the presence of flammable vapors, gases or highly combustible dusts
- For installation at petroleum refineries, chemical and petrochemical plants and other process industry facilities where similar hazards exist
- Dust-ignitionproof and raintight
- 1 in hub
- 1 hp at 115 VAC, 2 hp at 230 VAC, 3 hp at 460 to 575 vac
