Eaton 1MP6126R

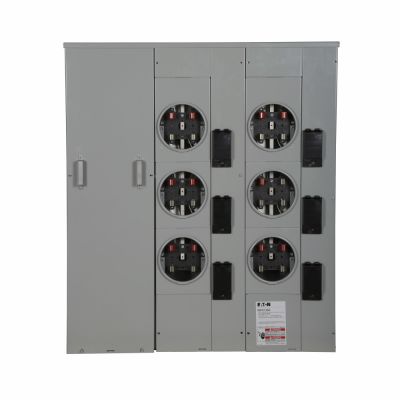

EATON 1MP6126R 3-Wire Group Metering Meter Pack, 125 A Self-Contained Socket, Underground Feed, 120/240 VAC, 600 A Bus
Meter Socket and Power Outlet
7598344
1MP6126R
Eaton
$0.00
/ ea
- Breaker Type: BR2/BRH2/BRHX2/BRHH2/BRX2
- Bus Amps: 600
- Dimensions: 7.01 in L x 36.28 in W x 41.59 in H
- Enclosure Type: NEMA 1/3R
- Feed Type: Underground
- Main Lugs: Terminal Box
- Mounting Type: Surface
- Number of Meter Sockets: 6
- Phase: 1
- Socket Amps: 125
- Socket Cover Style: Ring
- Socket Type: Self-Contained
- Type: 3-Wire Group Metering
- Voltage Rating: 120/240
- Wire size: 6 to 2/0 AWG, 14 to 2 AWG
EATON Meter Pack, 3-Wire Group Metering, Self-Contained Socket, Underground Feed, 120/240 VAC, 600 A Bus, 125 A Socket, 6 Meter Sockets, 1 ph, 6 to 2/0 AWG, 14 to 2 AWG Wire, Ring Socket Cover Style, Terminal Box Main Lugs, BR2/BRH2/BRHX2/BRHH2/BRX2 Breaker, NEMA 1/3R, Surface Mount, 7.01 in L x 36.28 in W x 41.59 in H
- Features
- Units are self-contained (main terminal box included for installations requiring up to 6 m socket positions in a single enclosure)
- Units are not gangable with any other metering device
- Series rating up to 100 kA
- Bondable neutral
- Provision for 2-pole breaker
