Littelfuse LFH60030-2SID

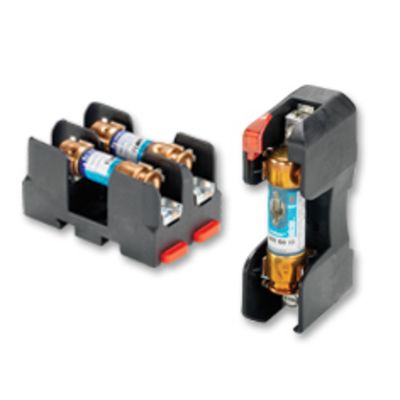

Littelfuse POWR-GARD LFH60030-2SID Indicating Fuse Block, 600 VAC, 30 A, Class: H, 22 to 10 AWG Copper Wire, 2 Poles
Distribution Blocks
7328518
LFH60030-2SID
Littelfuse
$0.00
/ ea
- Amperage Rating: 30
- Class: H
- Color: Black
- Connection Type: Screw
- Dimensions: 2.88 in W x 2.07 in D x 6.56 in H
- Mounting Type: Bolt-In/DIN Rail
- Number of Poles: 2
- Series: LFH
- Suitable For Use With: NLS Series Fuse
- Temperature Rating: 130
- Type: Indicating
- Voltage Rating: 600
- Wire size: 22 to 10 AWG Copper
The new Littelfuse Class H blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.
- Features
- Indication offered on most 250 and 600 VAC versions
- DIN rail releasable for all non-knife blade style fuses
- Only 1-hand is required to release from DIN rail (lock open lock closed)
- Universal mounting holes make for easy replacement
- Clip designs maximize electrical contact and minimize heat rise
- Reinforcing clips are standard on all class H fuse blocks rated 100 A and higher
- Solid/stranded wire
