Littelfuse LFH25200-3C

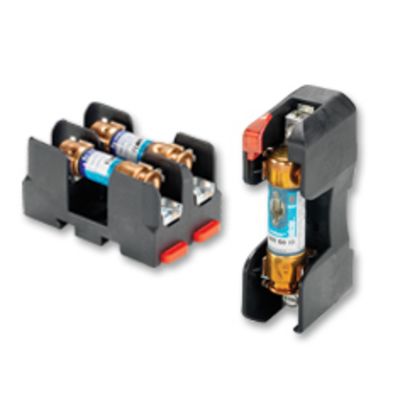

Littelfuse POWR-GARD LFH25200-3C Fuse Block, 250 VAC, 200 A, Class: H, 6 AWG to 250 kcmil Wire, 3 Poles
Fuse Holders and Blocks
7137642 LFH25200-3C
Littelfuse
$0.00 / ea

Littelfuse LFH25200-3C
  • Amperage Rating: 200
  • Class: H
  • Connection Type: Box Lug
  • Dimensions: 7.13 in L x 9 in W x 2.85 in H
  • Material: Thermoplastic
  • Mounting Type: DIN Rail
  • Number of Poles: 3
  • Series: LFH
  • Suitable For Use With: NLN Series Fuse
  • Temperature Rating: 130
  • Voltage Rating: 250
  • Wire size: 6 AWG to 250 kcmil
The new Littelfuse Class H blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.
QTY
Add to Wishlist
  • Features
  • Universal mounting holes for easy replacement
  • Only 1-hand is required to release from DIN rail (lock open lock closed)
  • Reinforced fuse clips are standard on all class H and class R fuse blocks
  • <0.6 mA at 600 VAC leakage current
  • 10 kA rms symmetrical withstand rating
  • Clip designs maximize electrical contact and minimize heat rise
  • DIN rail releasable for all non-knife blade style fuses
  • Lead-free
  • Indication offered on most 250 and 600 VAC versions
