ABB Installation Products 54880BEUB

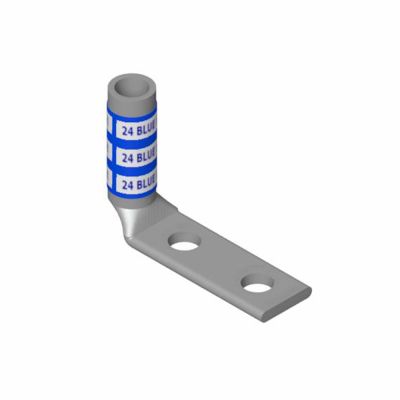

Color-Keyed 54880BEUB 54800 2-Hole Non-Insulated Compression Lug Connector, 750 kcmil Copper Conductor, Die Code: 106, 1/2 in Stud, Copper
Lug Compression Connectors
6794723
54880BEUB
ABB Installation Products
$0.00
/ ea
- Barrel Size: 1.33 in Dia
- Barrel Type: Blind End/Long
- Color: Black
- Conductor size: 750
- Conductor Type: Copper
- Die Code: 106
- Material: Copper
- Mounting Hole Size: 0.531
- Series: 54800
- Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated
- Stud Size: 1/2
- Tongue Size: 3 in L x 1.94 in W x 0.27 in THK
- Tongue Type: 90 deg
- Type: 2-Hole Non-Insulated
- Voltage Rating: 35
Copper Two-Hole Lug, 90 Degree Bend Long Barrel, Blind End, Max 35kV, Wire Size 750 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 106, Die Color Code Black
- Features
- High conductivity wrought copper construction
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Color-Keyed® connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by compression
- High quality connection at a low installed cost
