Panduit F94-40-Q

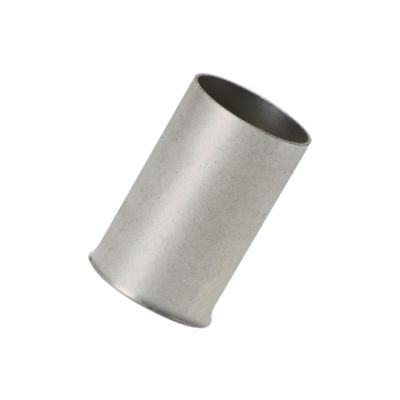

Panduit Pan-Term F94-40-Q Non-Insulated Standard Ferrule, 7/0 AWG Stranded Conductor, 40 mm L, Copper, Metallic
Ring Terminals
7555820
F94-40-Q
Panduit
$0.00
/ ea
- Barrel Size: 1.02 in OD
- Barrel Type: Seamless
- Color: Metallic
- Conductor size: 7/0
- Conductor Type: Stranded
- Finish: Tin Plated
- Length: 40
- Material: Copper
- Series: F Series
- Specifications: 1-3/4 in L Wire Strip, 1.57 in Mounting Hole
- Temperature Rating: 302
- Type: Non-Insulated Standard
Panduit Pan-Term Ferrule, Non-Insulated Standard, Series: F Series, Stranded Conductor, 7/0 AWG Conductor, 40 mm Length, Seamless Barrel, 1.02 in OD Barrel, Specifications: 1-3/4 in L Wire Strip, 1.57 in Mounting Hole, 302 deg F, Copper, Tin Plated, Metallic
- Features
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
