Panduit PMNF1-3F-3K

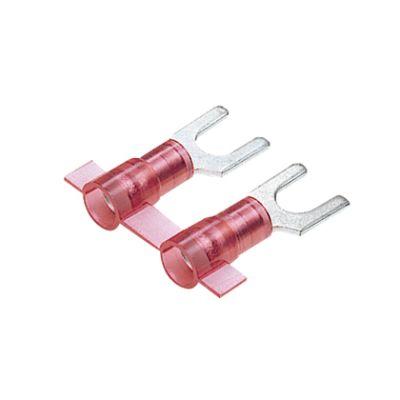

Panduit Pan-Term Reel Smart PMNF1-3F-3K Type PMNF-F Reel Fed Metric Fork Terminal, 18 AWG Conductor, 0.79 in L, Funnel Entry/Insulation Grip Sleeve Barrel, Copper, Red
Ring Terminals
7751327
PMNF1-3F-3K
Panduit
$0.00
/ ea
- Barrel Type: Funnel Entry/Insulation Grip Sleeve
- Color: Red
- Conductor size: 18
- Conductor Type: Stranded Copper
- Finish: Tin Plated
- Length: 0.79
- Material: Copper
- Specifications: 0.25 in L Wire Strip, 0.15 in Nylon Insulation, 0.25 in Mounting Hole
- Stud Size: M3
- Temperature Rating: 221
- Tongue Size: 0.23 in W
- Tongue Type: Standard Fork
- Type: Type PMNF-F Reel Fed Metric
- Voltage Rating: 600
Panduit Pan-Term Reel Smart Fork Terminal, Type PMNF-F Reel Fed Metric, Stranded Copper Conductor, 18 AWG Conductor, M3 Stud, 0.79 in Length, Funnel Entry/Insulation Grip Sleeve Barrel, Standard Fork Tongue, 0.23 in W Tongue, 600 VAC, Specifications: 0.25 in L Wire Strip, 0.15 in Nylon Insulation, 0.25 in Mounting Hole, 221 deg F, Copper, Tin Plated, Red
- Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
