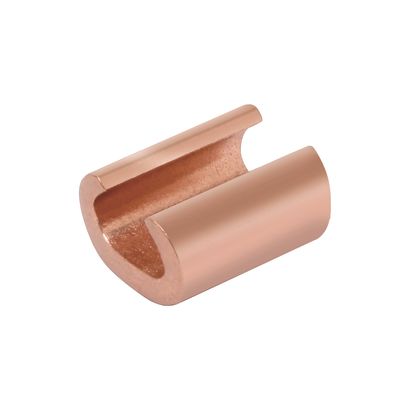

Burndy YC4C4

BURNDY CRIMPIT YC4C4 Type YC-C Compression C-Tap Connector, C Shape, 14 to 8 AWG Main/Run, 4 AWG Tap, Copper
Wiring Taps
4353493 YC4C4
Burndy
$0.00 / ea

Burndy YC4C4
  • Conductor Type: Commercial Stranded Copper
  • Dimensions: 5/8 in L
  • Finish: Plain Copper Plated
  • Main/Run Size: 14 to 8
  • Material: Copper
  • Shape: C
  • Specifications: BG or 5/8 Element A Die Index
  • Tap Size: 4
  • Temperature Rating: 90
  • Type: Type YC-C
  • Voltage Rating: 600 to 35000
BURNDY CRIMPIT Compression C-Tap Connector, Type YC-C, C, 14 to 8 AWG Main/Run Size, 4 AWG Tap, 600 to 35000 VAC, Commercial Stranded Copper Conductor, Specifications: BG or 5/8 Element A Die Index, 90 deg C, Copper, Plain Copper Plated, 5/8 in L
QTY
Add to Wishlist
  • Features
  • Range-taking connector - lowers inventory requirements
  • Compact size - easy to tape and insulate connection
  • Manufactured from high conductivity wrought copper provides low resistance and excellent electrical conductivity
  • Economical provides low installed cost
  • 4, 6 AWG conductor run size
  • 4 AWG tap size
  • For Y35, Y750, Y45, Y46 tool, U-BG die, MD6 tool, BG die, W-BG die, OUR840 tool and XNBG die
