Legrand 2623RED

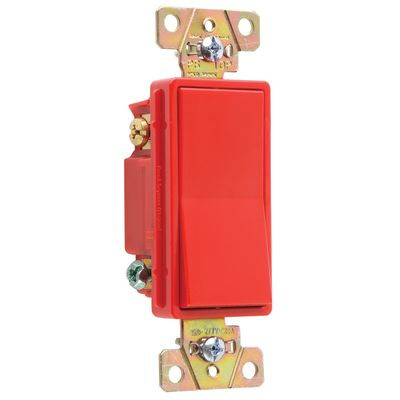

Pass & Seymour 2623RED 3-Way Decorator Switch, 120/277 VAC, 20 A, 3 W Power Rating
Decorator and Rocker Switch
7462417
2623RED
Legrand
$0.00
/ ea
- Actuator: Paddle
- Amperage Rating: 20
- Color: Red
- Contact Rating: 20 A at 120/277 VAC
- Dimensions: 4.2 in H x 1.3 in W x 1.06 in D
- Insulation: Bare
- Material: Polycarbonate
- Mounting: Wall
- Number of Poles: 3
- Operating Cycles: 10000
- Power Rating: 3
- terminal type: Back/Side Wire/Threaded
- Type: 3-Way
- Voltage Rating: 120/277
Three-way, Back and Side Wire, Decorator Switch, 20 amps, 120/277 volts, Red.
- Features
- Impact resistant polycarbonate back body and frame
- Cushioned thermoplastic paddle assures smooth, quiet, long term operation
- Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts
- Internal screw pressure plate back and side wire capability for easy installation with 14 to 10 AWG stranded or solid copper clad wire
- Terminals made of high conductivity brass and serrated for maximum wire gripping
- Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance
- Integral auto-ground clip for positive ground to metal boxes
- Tri-drive ground, terminal and mounting screws
- All terminal screws backed out, ready-to-install
- UL 94-V2 flammability rated
- Withstand minimum dielectric voltage of 1500 VAC
- Construction grade
- Tri-drive brass plated steel terminal screw
- Steel strap and pressure plate
- Silver cadmium oxide contact, brass spring arm, rubber bumper, zinc plated steel spring
