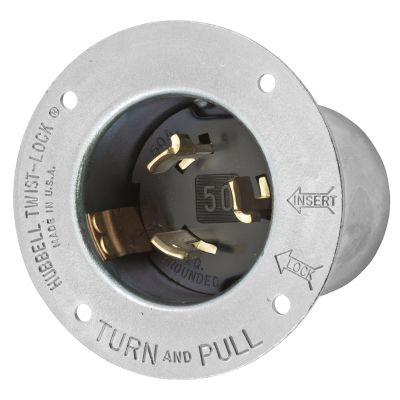

Hubbell Wiring HBL3775

Wiring Device-Kellems Twist-Lock HBL3775 3-Phase Extra Heavy Duty Grounding Standard Screw Mount Locking Flanged Inlet, 600 VAC/250 VDC, 50 A, 3 Poles, 4 Wires, Metallic
Receptacles
140125 HBL3775
Hubbell Wiring
$0.00 / ea

  • Amperage Rating: 50
  • Color: Metallic
  • Dimensions: 2.17 x 3.5 x 2.62
  • Grade: Industrial
  • Material: Steel
  • Number of Poles: 3
  • Number Of Wires: 4
  • Temperature Rating: -40 to 75
  • terminal type: Pressure Screw
  • Type: 3-Phase Extra Heavy Duty Grounding Standard Screw Mount
  • Voltage Rating: 600 VAC/250 VDC
Wiring Device-Kellems Twist-Lock Locking Flanged Inlet, 3-Phase Extra Heavy Duty Grounding Standard Screw Mount, 600 VAC/250 VDC, 50 A, 3 Pole, 4 Wires, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Steel, Metallic, 2.17 x 3.5 x 2.62 in
  • Features
  • Withstands 2000 VAC minimum dielectric voltage
  • 50 A 6 AWG terminal accommodation
  • Terminals identified in accordance with UL 498 (x, y, z, white, green)
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
  • Steel pressure screw, zinc plate ground screw
  • Brass blade
  • Steel weldment flanged casing
  • Steel, zinc plated mounting screw
  • Metallic flanged casing provides maximum strength and protection
  • Thermoset interior provides superior heat resistance
  • Indoor dry environmental conditions unless protected by additional means
  • Screw mounted
  • Non-NEMA rated
  • 6 AWG wire
