Hubbell Wiring HBL5361WR

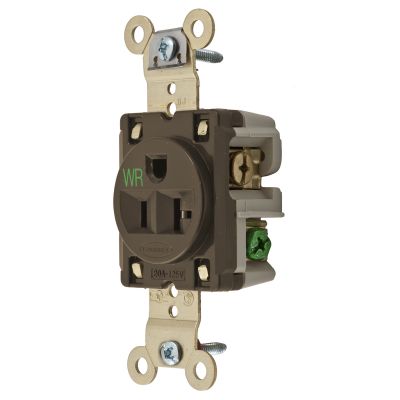

Wiring Device-Kellems HBL5361WR Grounding Extra Heavy Duty Straight Blade Single Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Receptacles
7057266
HBL5361WR
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Brown
- Dimensions: 1.63 in W x 1.19 in D
- Grade: Specification
- Horsepower: 1
- Nema Rating: NEMA 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Grounding Extra Heavy Duty
- Voltage Rating: 125
Wiring Device-Kellems Straight Blade Single Receptacle, Grounding Extra Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -40 to 75 deg C, Screw Terminal, Brown, 1.63 in W x 1.19 in D Dimensions
- Features
- Weather resistance complies with national electrical code requirements
- Back wired ground terminal allows faster, easier installation
- Finder groove face
- Traditional face shape
- #8-32 brass terminal screw and ground screw
- Nylon top and reinforced PET base
- 0.032 in brass power contact
- 0.05 in brass mounting strap
- Stainless steel auto ground clip
- Steel, zinc plated mounting screws
- Withstand 2000 VAC minimum dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Terminals identified in accordance with UL498
- 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
- Ratings are a permanent part of the device product identification
- UL 94V-2 flammability
- Weather-resistant
