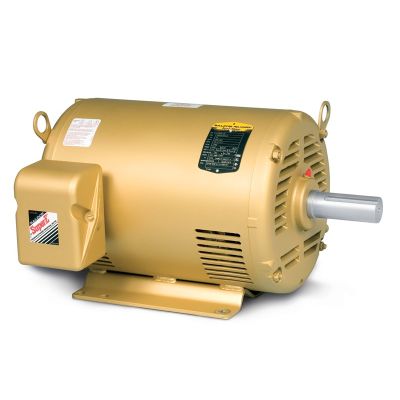

Baldor EM3311T
Baldor-Reliance Super-E EM3311T Type 3733M Continuous Duty AC Motor, OPSB/NEMA A Enclosure, 7-1/2 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 213T Frame, 1770 rpm Speed, F1/Foot Rigid Mount
AC Motors
283851
EM3311T
Baldor
$0.00
/ ea
- Amperage Rating: 20.4/19.4/9.7
- Application Type: General Purpose AC Motors, Compressor Motors, Fan and Blower Motors
- Bearing Type: Ball
- Dimensions: 16.32 in L x 12.7 in W x 10.03 in H
- Enclosure Type: OPSB/NEMA A
- Frame: 213T
- Frequency Rating: 60
- Horsepower: 7-1/2
- Insulation Class: Class F
- Material: Steel
- Mounting Type: F1/Foot Rigid
- Number Of Speeds: 1
- Phase: 3
- Rotation: Reversible
- Service Factor: 1.15
- Shaft Size: 1-3/8
- Speed: 1770
- Temperature Rating: 40 to 76
- Torque Rating: 22.4
- Type: Type 3733M Continuous Duty
- Voltage Rating: 208/230/460
Baldor-Reliance Super-E AC Motor, Type 3733M Continuous Duty, General Purpose AC Motors, Compressor Motors, Fan and Blower Motors Application, 7-1/2 hp, 208/230/460 VAC, 20.4/19.4/9.7 A, 60 Hz Frequency, 3 ph, 1770 rpm Speed, 1 Speed, OPSB/NEMA A Enclosure, 213T Frame, 1-3/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 22.4 ft-lb Torque, F1/Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class F, Steel, 16.32 in L x 12.7 in W x 10.03 in H Dimensions
- Features
- 60 Hz designs with 50 Hz information on 2, 4, 6-pole 1 to 125 hp ratings
- Simple F1 to F2 conversion on cast iron frames
- Designed for longevity with a 3 year warranty on premium efficient Super-E® motors
