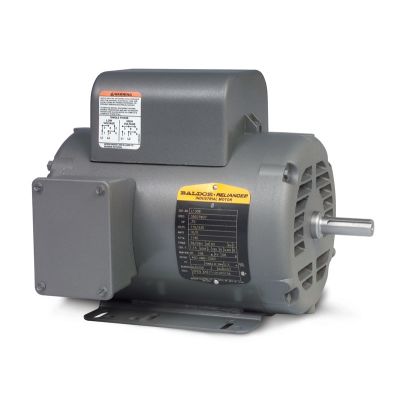

Baldor L1410T
Baldor-Reliance L1410T Type 3640LC Continuous Duty AC Motor, Open/NEMA L Enclosure, 5 hp, 208/230 VAC, 60 Hz, 1 Phase, 184T Frame, 1725 rpm Speed, F1/Foot Rigid Mount
AC Motors
284853
L1410T
Baldor
$0.00
/ ea
- Amperage Rating: 25/23
- Application Type: General Purpose AC Motors, Fan and Blower Motors
- Bearing Type: Ball
- Dimensions: 16.5 in L x 11.54 in W
- Enclosure Type: Open/NEMA L
- Frame: 184T
- Frequency Rating: 60
- Horsepower: 5
- Insulation Class: Class F
- Material: Steel
- Mounting Type: F1/Foot Rigid
- Number Of Speeds: 1
- Phase: 1
- Rotation: Reversible
- Service Factor: 1.15
- Shaft Size: 1-1/8
- Speed: 1725
- Temperature Rating: 40 to 76
- Torque Rating: 15
- Type: Type 3640LC Continuous Duty
- Voltage Rating: 208/230
Baldor-Reliance AC Motor, Type 3640LC Continuous Duty, General Purpose AC Motors, Fan and Blower Motors Application, 5 hp, 208/230 VAC, 25/23 A, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, Open/NEMA L Enclosure, 184T Frame, 1-1/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 15 ft-lb Torque, F1/Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class F, Steel, 16.5 in L x 11.54 in W Dimensions
- Features
- Low noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design provides optimized torque profiles
- Robust heavy gauge steel design
- Optimized airflow design providing higher horsepower in a smaller package
