Hubbell Wiring HBL13R22D

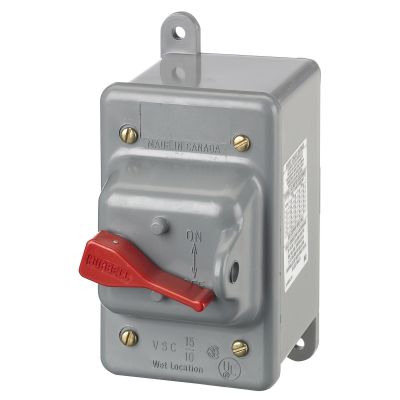

Wiring Device-Kellems Circuit-Lock HBL13R22D Standard Non-Metallic Disconnect Switch, 600 V, 30 A, 15 hp, 2 Poles
IEC Disconnects and Load Switches
6945817
HBL13R22D
Hubbell Wiring
$0.00
/ ea
- actuator type: Toggle
- Amperage Rating: 30
- Dimensions: 5.42 x 2.99 x 4.55
- Enclosure Type: NEMA 3/3R
- Horsepower: 15
- Material: Thermoplastic
- Mounting Type: Threaded
- Number of Poles: 2
- Phase: 1
- Temperature Rating: -40
- terminal type: Screw
- Type: Standard Non-Metallic
- Voltage Rating: 600
Wiring Device-Kellems Circuit-Lock Disconnect Switch, Standard Non-Metallic, 600 V, 30 A, 15 hp, 1 ph, 2 Pole, Toggle Actuator, NEMA 3/3R Enclosure, Threaded Mounting, Screw Terminal, -40 deg C, 5.42 x 2.99 x 4.55 in, Thermoplastic
- Features
- All switches are suitable as a motor disconnect
- Strong On/Off action with a quick make and slow break operation
- Heat resistant thermoset body provides superior dielectric strength
- 2 hp at 120 VAC 1-phase, 5 hp at 240 VAC, 10 hp at 480 VAC, 15 hp at 600 VAC 3-phase power rating
