Hubbell Wiring HBL13R89D

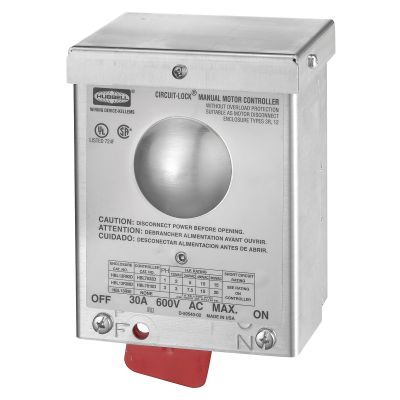

Wiring Device-Kellems CIRCUIT-LOCK HBL13R89D Standard Metallic Enclosed AC Motor Disconnect Switch With Switch, 600 V, 30 A, 20 hp, 3 Poles
IEC Disconnects and Load Switches
6824620 HBL13R89D
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL13R89D
  • actuator type: Toggle
  • Amperage Rating: 30
  • Dimensions: 5.52 x 4.4 x 3.3
  • Enclosure Type: NEMA 3R
  • Horsepower: 20
  • Material: Aluminum
  • Mounting Type: Threaded
  • Number of Poles: 3
  • Phase: 3
  • Temperature Rating: -40
  • terminal type: Screw
  • Type: Standard Metallic Enclosed
  • Voltage Rating: 600
Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Aluminum, NEMA 3R Enclosure with Switch
QTY
Add to Wishlist
  • Features
  • Wiring conduit knockouts
  • Aluminum cover and base, base is pre-drilled for rear surface mounting
  • Switches and lighting controls, industrial grade, manual motor controllers, motor disconnects
  • Raintight drip shield top, rolled seamless sides
  • Front activated lever allows mounting in tight spaces
  • 3 hp at 120 VAC, 7.5 hp at 240 VAC, 15 hp at 480 VAC, 20 hp at 600 VAC power rating at 3-phase
