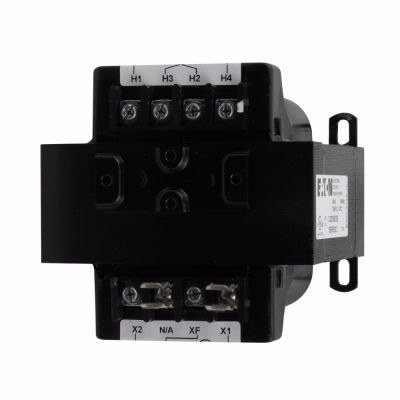

Eaton C0250E2A
EATON C0250E2A Type MTE Control Transformer, 240/480, 220/440, 230/460 V Primary, 120/115/110 V Secondary, 250 VA Power Rating, 50/60 Hz, 1 ph Phase
NEMA Transformers
478210
C0250E2A
Eaton
$0.00
/ ea
- Connection Type: Copper Magnet Wire/Molded-In
- Dimensions: 4.37 in L x 4.488 in W x 3.819 in H
- Frequency Rating: 50/60
- Housing Material: Silicon Steel
- Phase: 1
- Power Rating: 250
- Primary Voltage: 240/480, 220/440, 230/460
- Secondary Voltage: 120/115/110
- Temperature Rating: 55
- Type: Type MTE
Eaton type MTE, industrial control transformer, pv: 240 x 480v, 230 x 460v, 220 x 440v, taps: none, sv: 120/115/110v, 55пїЅc, 250 va
- Features
- Molded-in terminals allow for maximum durability
- Copper magnet wire provides for high quality, efficient operation
- Epoxy encapsulated coils provide protection from moisture and contaminants commonly found in industrial environments
- Laminations of high quality, silicon steel minimize core losses and optimize performance
- The use of grounded or ungrounded circuits that are independent of the power or lighting grounds affords greater safety to the operator
- Copper winding
- No taps
