Eaton M22-PVLT-K12-230R

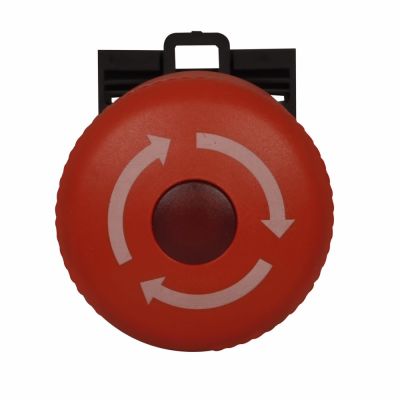

EATON RMQ-Titan M22-PVLT-K12-230R Emergency Stop Modular Pushbutton Illuminated Twist Release Switch, 22.5 mm, 1NO-2NC Contact, Knob Operator, Red/Silver
IEC Pushbuttons - 22.5mm
7730445
M22-PVLT-K12-230R
Eaton
$0.00
/ ea
- Color: Red/Silver
- Contact Configuration: 1NO-2NC
- Contact Mode: Maintained
- Contact Rating: 10 A at 550 VAC, 10 A at 600 VDC
- Enclosure Type: NEMA 4X/13/IP67/IP69K
- Environmental Conditions: -13 to 158 deg F Operating Temperature
- Material: Plastic
- Operator Type: Knob
- Series: M22
- Size: 22.5
- Type: Emergency Stop Modular Pushbutton
EATON RMQ-Titan Illuminated Twist Release Switch, Emergency Stop Modular Pushbutton, Series: M22, 22.5 mm Size, 1NO-2NC Contact Configuration, Maintained Contact Mode, 10 A at 550 VAC, 10 A at 600 VDC Contact, Knob Operator, NEMA 4X/13/IP67/IP69K Enclosure, Plastic, Red/Silver, Environmental Conditions: -13 to 158 deg F Operating Temperature
- Features
- LED offering only for improved brightness quality and up to 100000 hours of operation
- More than 100000 mechanical operations
- Capable of communicating via ASi protocol with ASi adapter modules
- Suitable for use in safety applications up to Cat 4 or Sil-3
