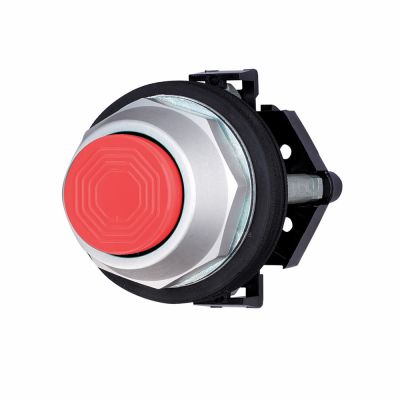

Eaton HT8ABRB

EATON HT8ABRB Oil/Watertight Non-Illuminated Pushbutton, 30.5 mm, 1NC Contact, Red
NEMA Pushbuttons - 30.5mm
7671433 HT8ABRB
Eaton
$0.00 / ea

Eaton HT8ABRB
  • Actuator: Extended Button
  • Bezel/Housing: Polished Chrome Bezel
  • Color: Red
  • Contact Configuration: 1NC
  • Contact Mode: Momentary
  • Contact Rating: 10 A at 600 VAC, 5 A at 600 VDC
  • Enclosure Type: NEMA 1/2/3/3R/4/4X/12
  • Environmental Conditions: -12 to 60 deg C Operating Temperature, 95% Relative Humidity at 60 deg C
  • Material: Plastic
  • Series: HT800
  • Size: 30.5
  • terminal type: Saddle Clamp
  • Type: Oil/Watertight
EATON Non-Illuminated Pushbutton, Oil/Watertight, Series: HT800, 30.5 mm Size, 1NC Contact Configuration, Momentary Contact Mode, 10 A at 600 VAC, 5 A at 600 VDC Contact, Bezel/Housing: Polished Chrome Bezel, Extended Button Actuator, Saddle Clamp Terminal, NEMA 1/2/3/3R/4/4X/12 Enclosure, Plastic, Red, Environmental Conditions: -12 to 60 deg C Operating Temperature, 95% Relative Humidity at 60 deg C
QTY
Add to Wishlist
  • Features
  • Anodized aluminum mounting rings
  • Watertight double V-gasket seals
  • Extended height bulbs
  • Transparent housing contact blocks
  • Color coded contact blocks
  • Gold plated contacts (on low voltage contact block)
  • Reliability ridge on movable contact
  • Stackable screw-mounted contact blocks
  • Contact blocks can be mounted in left/right or top/bottom positions
  • Field selectable knob/lever mounting positions at any 22.5 deg increment
