Molex 1A3006-34
WOOD 1A3006-34 MC 3P M/M-ATTACH STR
Sensor Cables and Connection Systems
7741673
1A3006-34
Molex
$0.00
/ ea
- Amperage Rating: 13
- Cable Size: 24 to 15
- Environmental Conditions: -20 to 80 deg C Temperature, IP67 deg of Protection
- Series: 130017
- Type: Male A-Size External Thread
- Voltage Rating: 600

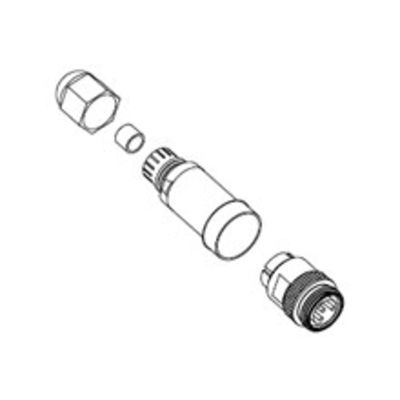

WOOD 1A3006-34 MC 3P M/M-ATTACH STR PG13.5
- Features
- Patented Quad-Beam™ contact design for reliability and low-resistance
- Allows easy conversion to quick connect or the repair of damaged, molded connectors
- Delivering optimum conductivity, Brad® Mini-Change® connectors from Molex offer the broadest selection of miniature connectors in the industrial
- Connectors are the standard by which all miniature connectors are measured
- Mini-Change® connectors are available in a wide variety of circuits and configurations
- With Mini-Change® connectors, industrial device wiring is easier to install and maintain
- To ensure a consistent, low resistance connection, the patented quad beam female contact is used
- Connectors are sealed to provide IP67 protection
- An anti-vibration feature prevents the coupler from loosening, even under extreme conditions
- External thread connection
- 5.08 to 11.43 mm Dia cable
- Single keyway
- Nickel plated brass coupling nut
- Gold over copper plating mating
