Molex 1R5G06A20A120

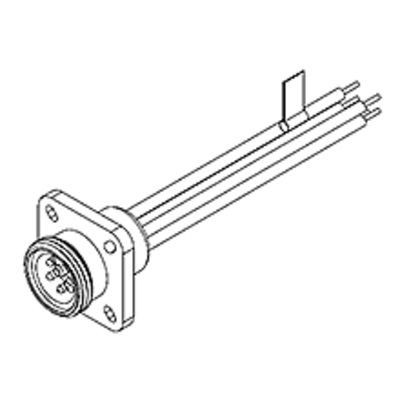

Brad Mini-Change 1R5G06A20A120 130013 5-Pole A-Size Single Keyway Single Ended External Thread Flange Mount Receptacle With 16 AWG PVC Lead, 600 VAC/VDC, 8 A, Straight Male Slot End
Sensor Cables and Connection Systems
463304
1R5G06A20A120
Molex
$0.00
/ ea
- Amperage Rating: 8
- Color: Gray
- Dimensions: 12 in L
- Grade: Industrial
- Material: Anodized Aluminum
- Nema Rating: NEMA 6
- Series: 130013
- Slot End Style: Straight Male
- Type: 5-Pole A-Size Single Keyway Single Ended External Thread Flange Mount
- Voltage Rating: 600
Brad Mini-Change Receptacle, 5-Pole A-Size Single Keyway Single Ended External Thread Flange Mount, Series: 130013, 600 VAC/VDC, 8 A, Straight Male Slot End, NEMA 6, Industrial Grade, Anodized Aluminum, Gray, 12 in L Dimensions
- Features
- Patented Quad-Beam™ socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity
- Molded key indicator easier alignment and mating of connector
- Sealed to an IP67 rating prevents the entry of water during temporary submersion at a limited depth
- Gold over nickel plated contacts high performance, long-lasting plating that maintains low resistance through many mate/unmate cycles
- Integral strain relief provides 100 lb minimum cable strain relief, radiates stress in side-loaded conditions
