Molex 703001D02F060

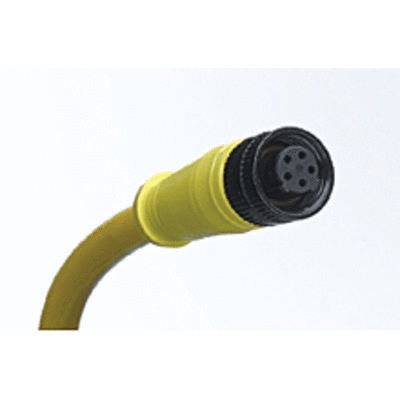

Brad Micro-Change Woodhead 703001D02F060 120072 Single Ended Cordset, 1/2-20 UNF 90 deg Female x Straight Pigtail Connector, 1.83 m L Cable, 3 Poles, Dual Keyway
Sensor Cables and Connection Systems
404050
703001D02F060
Molex
$0.00
/ ea
- Amperage Rating: 4
- Cable Length: 1.83
- Cable Material: PVC
- Cable Type: 22 AWG Jacketed
- Connector Material: PVC
- Connector Size: 1/2-20 UNF
- Connector Type: 90 deg Female x Straight Pigtail
- Keyway: Dual
- Nema Rating: NEMA 6
- Number of Poles: 3
- Series: 120072
- Type: Single Ended
- Voltage Rating: 250
- Wire Pin Colors: Green/Red/Black/Red/White
Brad Micro-Change Woodhead Cordset, Single Ended, Series: 120072, 90 deg Female x Straight Pigtail Connector, 1/2-20 UNF Connector, PVC Connector, 22 AWG Jacketed Cable, 1.83 m Cable Length, PVC Cable, 3 Pole, Dual Keyway, 250 VAC/VDC, 4 A, Green/Red/Black/Red/White Wire Pin, NEMA 6 NEMA Rating
- Features
- M12 design meets IEC specifications industry standard interface compatible with a wide array of sensors and switches
- Complete LED machine lighting solutions machine lights package includes LED light, mounting brackets and M12 cord sets and connectors simplifies ordering by condensing an entire lighting systems into single order numbers
- Harsh duty receptacle and water-tight panel-mount design enables enclosure meets NEMA 6P and IP67 protection
- Gold over palladium/nickel plating design provides a longer-lasting, high-performance electrical contact
- Heavy-duty die cast construction and IEC 61076-2-101 compliant design robust housing provides superior electro magnetic interference (EMI) and radio frequency interference (RFI) protection
- Anti-vibration feature prevents the coupler from loosening even under extreme vibration
