Molex 804001A09M020

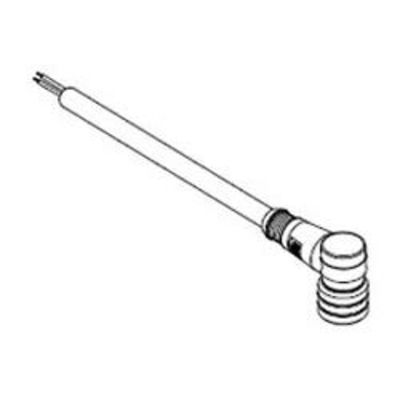

Brad Micro-Change Molex 804001A09M020 120065 Single Ended Cordset, M12 90 deg Female x Straight Pigtail Connector, 2 m L Cable, 4 Poles, Single Keyway
Sensor Cables and Connection Systems
404103 804001A09M020
Molex
$0.00 / ea

  • Amperage Rating: 4
  • Cable Length: 2
  • Cable Material: PVC
  • Cable Type: 22 AWG Jacketed/E152210
  • Connector Material: PUR
  • Connector Size: M12
  • Connector Type: 90 deg Female x Straight Pigtail
  • IEC Rating: IEC 61076-2-101
  • Keyway: Single
  • Nema Rating: NEMA 6P
  • Number of Poles: 4
  • Series: 120065
  • Type: Single Ended
  • Voltage Rating: 250
  • Wire Pin Colors: Brown/White/Blue/Black
Brad Micro-Change Molex Cordset, Single Ended, Series: 120065, 90 deg Female x Straight Pigtail Connector, M12 Connector, PUR Connector, 22 AWG Jacketed/E152210 Cable, 2 m Cable Length, PVC Cable, 4 Pole, Single Keyway, 250 VAC/VDC, 4 A, Brown/White/Blue/Black Wire Pin, IEC 61076-2-101 IEC, NEMA 6P NEMA Rating
  • Features
  • M12 design meets IEC specifications industry standard interface compatible with a wide array of sensors and switches
  • Complete LED machine lighting solutions machine lights package includes LED light, mounting brackets and M12 cord sets and connectors simplifies ordering by condensing an entire lighting systems into single order numbers
  • Harsh duty receptacle and water-tight panel-mount design enables enclosure meets NEMA 6P and IP67 protection
  • Gold over palladium/nickel plating design provides a longer-lasting, high-performance electrical contact
  • Heavy-duty die cast construction and IEC 61076-2-101 compliant design robust housing provides superior electro magnetic interference (EMI) and radio frequency interference (RFI) protection
  • Anti-vibration feature prevents the coupler from loosening even under extreme vibration
