Molex 884030K03M100

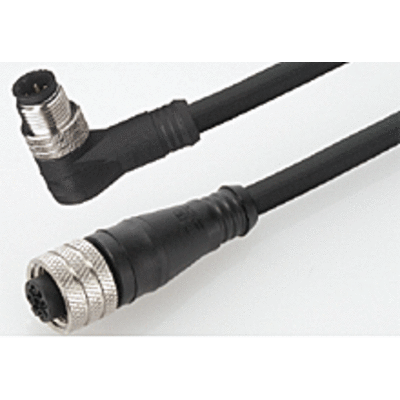

Brad Micro-Change 884030K03M100 120066 Double Ended Cordset, M12 Female x Male Connector, 10 m L Cable, 4 Poles, Single Keyway
Sensor Cables and Connection Systems
7201542 884030K03M100
Molex
$0.00 / ea

Molex 884030K03M100
  • Amperage Rating: 4
  • Angle: Straight
  • Cable Length: 10
  • Cable Material: TPE
  • Cable Type: PLTC-ER
  • Connector Material: TPE
  • Connector Size: M12
  • Connector Type: Female x Male
  • IEC Rating: IEC 61076-2-101/IP67
  • Keyway: Single
  • Nema Rating: NEMA 6P
  • Number of Poles: 4
  • Series: 120066
  • Type: Double Ended
  • Voltage Rating: 250
  • Wire Pin Colors: Brown, White, Blue, Black
Brad Micro-Change Cordset, Double Ended, Series: 120066, Female x Male Connector, M12 Connector, TPE, PLTC-ER Cable, 10 m Cable Length, TPE Cable, 4 Pole, Single Keyway, 250 VAC/VDC, 4 A, Straight, Brown, White, Blue, Black Wire Pin, IEC 61076-2-101/IP67 IEC, NEMA 6P
QTY
Add to Wishlist
  • Features
  • M12 design meets IEC specifications industry-standard interface compatible with a wide array of sensors and switches
  • Complete LED machine lighting solutions machine lights package includes LED light, mounting brackets and M12 cordsets and connectors simplifies ordering by condensing an entire lighting systems into single order numbers
  • Harsh duty receptacle and water-tight panel-mount design enables enclosure meets NEMA 6P and IP67 protection
  • Gold over palladium/nickel plating design provides a longer-lasting, high-performance electrical contact
  • Heavy duty die cast construction and IEC 61076-2-101 compliant design robust housing provides superior electro magnetic interference (EMI) and radio frequency interference (RFI) protection
  • Anti-vibration feature prevents the coupler from loosening even under extreme vibration
