Molex 8A5007-31

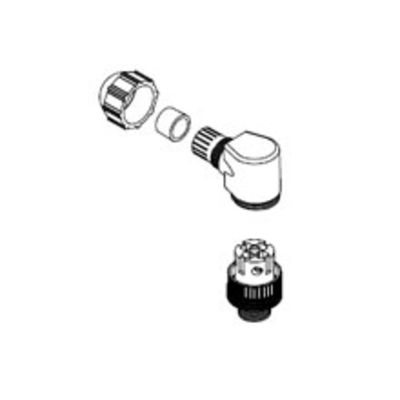

Brad Micro-Change 8A5007-31 120071 5-Pole External Thread Field Attachable Connector, 30 VAC/36 VDC, 4 A, 18 AWG
Sensor Cables and Connection Systems
582716
8A5007-31
Molex
$0.00
/ ea
- Amperage Rating: 4
- Cable Size: 18
- Coupling Nut Material: Brass
- Environmental Conditions: -25 to 90 deg C Temperature, IP67 deg of Protection
- Insert Material: Polyamide
- O-Ring Material: Nitrile
- Overmold Material: Polyamide
- Series: 120071
- Thread Size: M12
- Type: 5-Pole External Thread
- Voltage Rating: 30 VAC/36 VDC
Brad Micro-Change Field Attachable Connector, 5-Pole External Thread, Series: 120071, 30 VAC/36 VDC, 4 A, 18 AWG Cable, Nitrile O-Ring, Polyamide Insert, Polyamide Overmold, Brass Coupling Nut, M12 Thread, Environmental Conditions: -25 to 90 deg C Temperature, IP67 deg of Protection
- Features
- External thread coupling
- 90 deg (male) orientation, single keyway
- -25 to 90 deg C operating temperature
- Black nitrile grommet, silver plated copper alloy contact
- IP67 IP rating protection
- Black polyamide cord grip body, black nitrile O-ring
- 18 AWG wire
