Woodhead 1433B123

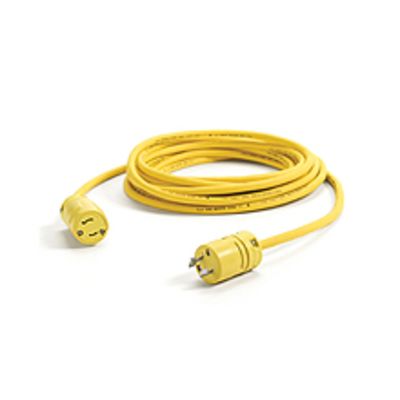

Woodhead reg; 1433B123 130143 2-Pole 3-Wire Type SOOW Cordset, 125 VAC, 20 A, 50 ft L Cord, 3 Conductors
Sensor Cables and Connection Systems
7283149
1433B123
Woodhead
$0.00
/ ea
- Color: Yellow
- Conductor size: 12
- Cord Length: 50
- Electrical Ratings: 125 VAC, 20 A
- Number of Conductors: 3
- Receptacle Type: NEMA 5-20
- Series: 130143
- Temperature Rating: -40 to 75
- Type: 2-Pole 3-Wire Type SOOW
Woodhead® Cordset, 2-Pole 3-Wire Type SOOW, Series: 130143, 125 VAC, 20 A Electrical Rating, 50 ft Cord Length, 3 Conductors, 12 AWG Conductor, NEMA 5-20 Receptacle, -40 to 75 deg C, Yellow
- Features
- 2-pole/3-wire
- Neotex® paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway offering
- Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Two-piece cord clamp strain relief includes tri-drive screws to firmly secure the cord
- Nickel plated brass plug blades and connector contacts
- Neotex® paracril OZO rubber Super-Safeway outer housing
- Nylon safeway outer housing
- Stainless steel face screws
- Nylon face insert
- Brass wire saddle clamp
- Zinc plated steel cord clamp screws
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- With locking blade
