Panduit N8522BV

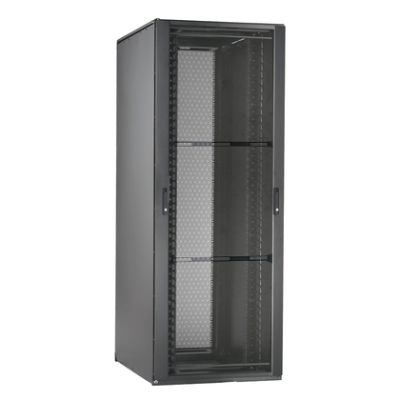

Panduit Net-Access N8522BV Type N Enclosure Cabinet With (1) Top Panel, (2) Standard Side Panel, (1) VED Ready, 84 in L x 31-1/2 in W x 48 in D, Steel
Horizontal and Vertical Managers
7337646
N8522BV
Panduit
$0.00
/ ea
- Capacity: 3000/2500 lb Static/Rolling
- Color: Black
- Depth: 48
- Finish: Epoxy Coated
- Length: 84
- Lock: Keyed Swing Handle
- Material: Steel
- Rack Unit: 45U
- Type: Type N
- Width: 31-1/2
Panduit Net-Access Enclosure Cabinet, Type N, 84 in Length, 31-1/2 in Width, 48 in Depth, 45U Rack Unit, Lock: Keyed Swing Handle, 3000/2500 lb Static/Rolling Capacity, Steel, Epoxy Coated, Black
- Features
- Welded and assembled steel frame construction
- The top of cabinet includes molded edge protection and snap-in covers and pre-installed in cable entry openings to prevent air leakage
- Cabinets shall include front dual hinge doors or single hinge doors with 69% open perforation and rear split doors
- Cabinets shall include front and rear cable management fingers, the entire cabinet shall be fully electrically bonded, including equipment rails, door and side panels
- Single point bonding locations shall be available at the top and bottom of each cabinet
- Wide range of cabinet designs available for specific thermal applications, resulting in improved thermal efficiencies and reductions in energy expenditures
- Integral cabinet sealing features reduce bypass air and mixing of cold air and exhaust air within the cabinet for improved thermal efficiency
- Creates a 8 in unobstructed channel between cabinets promoting best in class cable management, provides flexibility for switch specific thermal solutions
- Innovative dual hinge door with slam latch handles provides superior access to cabinets and cabling, easing cabinet to cabinet cabling and promoting faster moves, adds and changes
- Cabinets can be ganged together for complete streamlined appearance improving data center aesthetics
- Cable management included helps speed deployment, easily adjustable rear rails can be quickly repositioned, heavy duty leveling legs can be accessed from top or bottom for faster deployment
- Switch side clearance requirements for increased network reliability and proper thermal management
- Cabinets and accessories are single point bonded, providing a safe and reliable network while reducing installation costs
- Provides bend radius control for each rack unit and can be positioned where required on cabinet posts for cable protection for increased network availability
- Provides design flexibility, scalability and improved aesthetics for easier moves, adds and changes
- Provides optimal and discreet channels for managing and protecting cables contributing to increased network availability
- Multiple cabinet configurations for hot aisle/cold aisle, cold aisle containment or vertical exhaust ducting deployments
- Dual hinge perforated front door opens to the left or right
- Split perforated rear doors open in the middle to minimize door swing footprint
- (2) set #12 to 24 threaded equipment mounting rails
