Panduit S6522BA

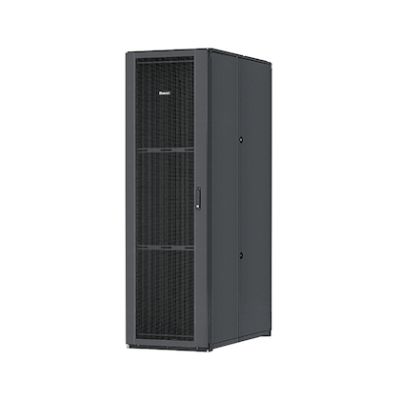

Panduit Net-Access S6522BA Type S Enclosure Cabinet With Top Panel, 85 in L x 23.6 in W x 47.24 in D, Steel
Horizontal and Vertical Managers
7337406
S6522BA
Panduit
$0.00
/ ea
- Color: Black
- Depth: 47.24
- Finish: Powder Coated
- Length: 85
- Lock: Quarter-Turn Latch
- Material: Steel
- Rack Unit: 45U
- Type: Type S
- Width: 23.6
Panduit Net-Access Enclosure Cabinet, Type S, 85 in Length, 23.6 in Width, 47.24 in Depth, 45U Rack Unit, Lock: Quarter-Turn Latch, Steel, Powder Coated, Black
- Features
- Net-Access™ S type cabinets are ideal for server application as these cabinets come standard with front fixed rails and rear adjustable equipment rails
- The top of cabinet includes molded edge protection and snap in covers, and pre-installed in cable entry openings to prevent air leakage
- S type cabinets are manufactured with a welded and assembled steel frame
- Front single hinge door and split perforated rear door with 69% open perforation
- Fully integral bonded without the use of grounding wires equipment rails, door and side panels
- Wide range of cabinet designs available for specific thermal applications, resulting in improved thermal efficiencies and reductions in energy expenditures
- Can be ganged together for complete streamlined appearance improving data center aesthetics
- Integrated casters to provide easy roll to position
- Cable management ready rails included help speed deployment
- Easily adjustable rear rails can be quickly repositioned, heavy duty leveling legs can be accessed from top or bottom for faster deployment
- Cabinets and accessories are integrally bonded without the use of grounding wires to provide a safe and reliable network while reducing installation costs
- Provides bend radius control for each rack unit and can be positioned where required on cabinet posts for cable protection for increased network availability
- Design flexibility, scalability, and improved aesthetics for easier moves, adds and changes
- Cabinet configurations for hot aisle/cold aisle or vertical exhaust ducting deployments
- Single hinge perforated front door
- Split perforated rear doors open in the middle to minimize door swing footprint and switch configured with front cable management
