Panduit PCSBMT600-12S1Y

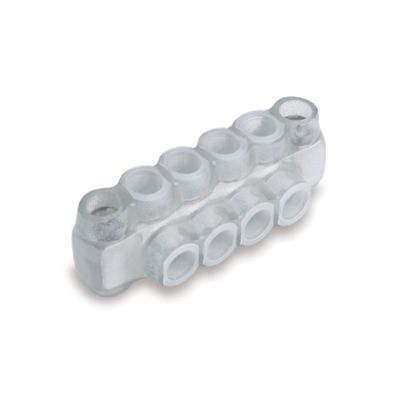

Panduit Pan-Lug PCSBMT600-12S1Y 12-Port Single Sided Multi-Tap Connector With Clear PVC Insulation and 1/4 in Mounting Holes, Aluminum/Copper/Stranded Conductor, 6 AWG to 600 kcmil Run/Main, Aluminum
Communication Cable
6814840
PCSBMT600-12S1Y
Panduit
$0.00
/ ea
- Conductor Type: Aluminum/Copper/Stranded
- Dimensions: 18.09 in L x 2.25 in W x 2.88 in H
- Material: Aluminum
- Run/Main Size: 6 AWG to 600 kcmil
- Series: PCSBMT
- Specifications: 1/4 in Stud, 3/8 in Hex Key, 12-Hole
- Temperature Rating: 90
- Type: 12-Port Single Sided
- Voltage Rating: 600
Panduit Pan-Lug Multi-Tap Connector, 12-Port Single Sided, Series: PCSBMT, Aluminum/Copper/Stranded Conductor, 6 AWG to 600 kcmil Run/Main, 600 VAC, Specifications: 1/4 in Stud, 3/8 in Hex Key, 12-Hole, 90 deg C, Aluminum, 18.09 in L x 2.25 in W x 2.88 in H Dimensions
- Features
- Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation
- Flexible design can be used as a tap, splice or dead end connector
- Body made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion
- Wide wire range taking capability minimizes inventory requirements
- Dual sided entry allows offset and opposite entry for primary and secondary conductors
- Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
- Two isolated mounting holes at either end of connector facilitate direct mounting using 1/4 in bolts
