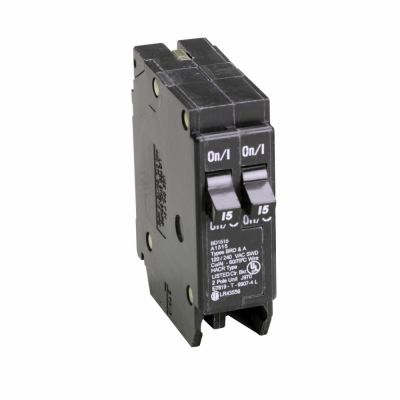

Eaton BD1515

EATON BD1515 TYPE BD DUPLEX CIRCUIT BREAKER, 120 VAC, (2) 15 A, 10 KA INTERRUPT, 1 POLES, THERMAL/MAGNETIC TRIP
Conduit EMT 10' Lengths
433141 BD1515
Eaton
$0.00 / ea

Eaton BD1515
  • Amperage Rating: (2) 15 A
  • Dimensions: 3 in L x 1 in W x 3 in H
  • Interrupt Rating: 10
  • Mounting Type: Plug-On
  • Number of Poles: 1
  • Phase: 1
  • Temperature Rating: 600 to 750
  • Trip Type: Thermal/Magnetic
  • Type: Type BD Duplex
  • Voltage Rating: 120
  • Wire size: 14 to 4
Eaton BR thermal magnetic circuit breaker,Type BD 1-Inch CTL plug-on circuit breaker,Includes rejection tab feature,15-15 A,10 kAIC,Single-pole,120V,BD,#14-4 AWG Cu/Al,BD,Type BR Loadcenters
QTY
Add to Wishlist
  • Features
  • Requires one 1 in space
  • Line/load side lug terminal
