RAB Lighting EX124-3/4

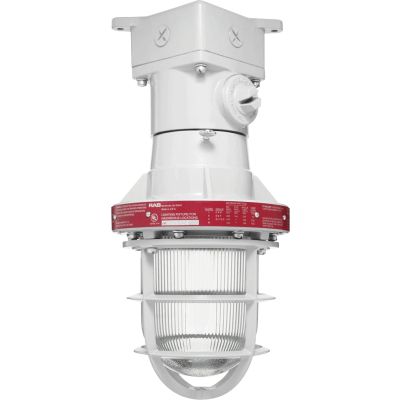

RAB EX124-3/4 HID Explosionproof Fixture With Guard, PS25 Incandescent Lamp, 120/208/240/277 VAC, Gray Housing
Conduit Body
4164747
EX124-3/4
RAB Lighting
$0.00
/ ea
- Dimensions: 15 in L x 7-1/4 in W
- Housing Finish: Gray
- Housing Material: Cast Aluminum
- Lamp Base Type: Medium
- Lamp Type: PS25 Incandescent
- Lamp Wattage: 300
- Lens Type: Clear Prismatic
- Light Color: White
- Mounting Type: Ceiling
- Type: HID
- Voltage Rating: 120/208/240/277
Explosionproof Incabdescent Ceiling Mount Guard 4 Hubs 3/4 Inch
- Features
- Fixture comes complete with built-in junction box
- Easy relamping with a single thumb screw
- Factory sealed for easy installation
- Heat and impact resistant prismatic glass globe
- Easy field installation
- Die cast guard, heavy cast aluminum, unit withstands 1490 lb/sq-in hydrostatic pressure
- Impact and heat resistant clear prismatic design affords excellent light control
- Heavy gauge aluminum with highly reflective white acrylic finish reflectors
- 3/4 in hub
- Leads pass through sealing compound that separates lamp chamber from wiring compartment
- Heavy gauge nickel plated copper components
- Spring loaded center contact
- Medium base glazed porcelain
- American act compliant COTS item manufactured in the United States and is compliant with the buy American act
