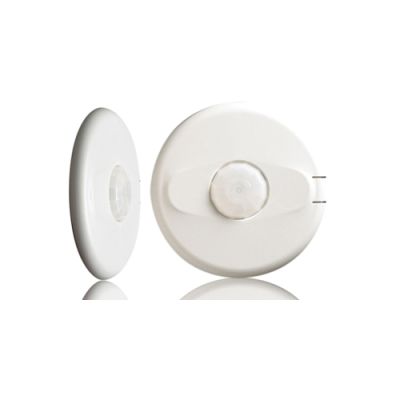

Wattstopper CI-300
WattStopper CI-300 Low Voltage Low Profile Ceiling Mount Occupancy Sensor With Isolated Relay, Light Level, 24 VDC, Passive Infrared Sensor, 1200 sq-ft Coverage, 360 deg Viewing, Wall Mount
Conduit Body
7018800
CI-300
Wattstopper
$0.00
/ ea
- Amperage Rating: 20
- Color: White
- Connection Type: Flying Lead
- Control Output: Automatic On/Automatic Off
- Coverage: 1200
- Dimensions: 4.5 in Dia x 1.02 in D
- Lamp Type: LED
- Material: Plastic
- Mounting Type: Wall
- Sensor Type: Passive Infrared
- Temperature Rating: 35
- Time Delay: 5 to 30
- Type: Low Voltage Low Profile
- Viewing Angle: 360
- Voltage Rating: 24
This Passive infrared (PIR) Ceiling Sensor 300 series automatically turns lighting on and off based on occupancy. The sensor mounts on the ceiling with a flat, low-profile appearance and provides 360 degrees of coverage.
- Features
- Architecturally appealing low profile appearance
- Auto set automatically selects optimal time delay and sensitivity settings
- Automatic or manual on operation when used with a BZ-150 power pack
- Plug terminal wiring for quick and easy installation
- Accepts low voltage switch input for manual on operation
- Walk through mode increases savings potential
- PIR (high/low) sensitivity adjustment
- CI-300 contains isolated relay with N/O and N/C outputs rated for 1 A at 30 VDC/VAC
- Advanced control logic based on RISC microcontroller
- LED indicates occupancy detection
- Dip switch simplifies sensor adjustments
- Clip mounting system simplifies ceiling tile installation
- Isolated relay, light level
- Magnetic low voltage
