Hubbell Raco 4804-1

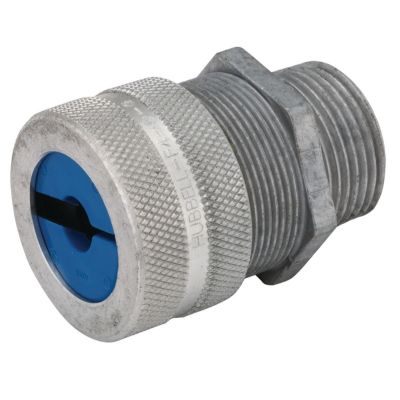

RACO 4804-1 Form 4 Strain Relief Straight Cord Connector, 1 in Trade, 1/2 to 5/8 in Cable Openings, Aluminum
Cord Connectors and Grips
7168843 4804-1
Hubbell Raco
$0.00 / ea

Hubbell Raco 4804-1
  • Cable Openings: 1/2 to 5/8
  • Color: Silver
  • Connection Type: Thread
  • Dimensions: 1-3/4 in OD
  • Material: Aluminum
  • Trade Size: 1
  • Type: Form 4 Strain Relief Straight
RACO Cord Connector, Form 4 Strain Relief Straight, 1 in Trade, Cable Openings: 1/2 to 5/8 in, Thread Connection, Aluminum, Silver, 1-3/4 in OD Dimensions
QTY
Add to Wishlist
  • Features
  • Aluminum construction provides corrosion resistance, neoprene grommet, wet or dry locations, color coded Gotcha ring provides fast identification of cord size
  • Patented Gotcha ring incorporates a split hinge design to prevent friction and to provide strain relief
  • Neoprene grommet
  • Knurled compression nut allows the fittings to be hand tightened to UL requirements
  • Gotcha ring is color coded for sizing identification
  • Aluminum liquidtight strain relief cord connectors are suitable for use in class I, division 2, class II, division 1, 2 and class III, division 1, 2 hazardous locations
  • 0.71 in L thread
  • 1.6 in length to shoulder
  • 1.02 in ID throat
  • 1.81 in across corners
  • 1.62 in across flats
