Eaton B-Line Inc. 4DB-3-1/4AL

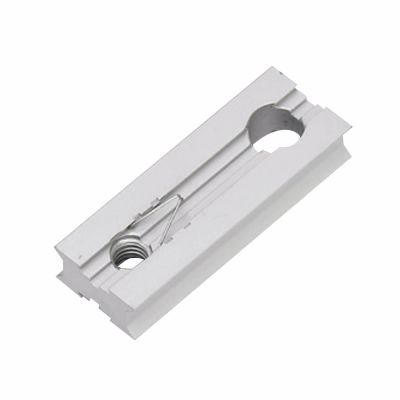

B-Line 4Dimension™ 4DB-3-1/4AL Back to Back Dovetail Bar, For Use With 4Dimension™ Strut, 1/4 in Dia Hole, 1/4-20 Thread, 465 lb Trapeze Load, 690 lb Pull-Out Load, 2-Hole, Aluminum, Clear
Compression Connectors
7397148 4DB-3-1/4AL
Eaton B-Line Inc.
$0.00 / ea

Eaton B-Line Inc. 4DB-3-1/4AL
  • Color: Clear
  • Dimensions: 3 in L x 1.072 in W x 0.75 in H
  • Finish: Anodized
  • Material: Aluminum
  • Series: 4DB
  • Specifications: 1/4 in Dia Hole, 1/4-20 Thread, 465 lb Trapeze Load, 690 lb Pull-Out Load, 2-Hole
  • Suitable For Use With: 4Dimension™ Strut
  • Type: Back to Back
Eaton B-Line series 4Dimension strut pipe clamps and fittings, Aluminum, 4 dimension back-to-back, Used with 3/8пїЅ-16 X 1/2пїЅ long cone point set screw, Dove-tail bar, Aluminum, 690 lbs pull out strength, 3/8"-16 thread size
QTY
Add to Wishlist
  • Features
  • For horizontal applications only
  • Recommend 3/8 - 16 x 1/2 in (12.7 mm) long cone point setscrew for threaded hole torque to 4 ft/lb (5 Nm)
  • 1/2 in (12.7 mm) THK bar
  • Spring that locks into slot on 4Dimension™ channels for easy installation
