Eaton LTB35045G

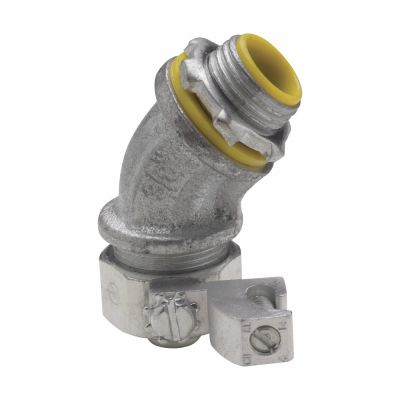

Crouse-Hinds Liquidator™ LTB35045G Insulated Liquidtight Conduit Connector With 6 to 3/0 AWG Aluminum Grounding Lug, 3-1/2 in Trade, 45 deg, Malleable Iron, Electro-Plated Zinc
Compression Couplings
7508980 LTB35045G
Eaton
$0.00 / ea

Eaton LTB35045G
  • Angle: 45
  • Dimensions: 5.25 in OD x 10.813 in W
  • Finish: Electro-Plated Zinc
  • Material: Malleable Iron
  • Mounting Type: Threaded
  • Series: LTB
  • Suitable For Use With: Liquidtight Flexible Metal Conduit
  • Trade Size: 3-1/2
  • Type: Insulated
Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 45пїЅ angle, Aluminum ground lug, Insulated, #3/0-6 AWG lug size, Malleable iron, 3-1/2"
QTY
Add to Wishlist
  • Features
  • Liquidtight, raintight, oiltight for protection and long-life in wet, dusty and corrosive environments
  • Hex shaped gland nut allows for easy wrenching, providing a fast, tight installation
  • Reusable, long ferrule prevents pullout and tight bend conduit popout
  • Third party certified
  • Liquidator™ fittings are used when liquidtight conduit is in tough, industrial and corrosive applications
  • Thermoplastic elastomer sealing gasket effectively seals out water, oil, dust and dirt
  • Locknut bites into box
  • Cupped long grounding ferrule is distortion-free
  • Malleable iron gland nut
  • Steel ferrule and steel or aluminum locknut
  • Polyethylene gland nut sealing ring
  • Thermoplastic elastomer sealing gasket
