Appleton STB9050L

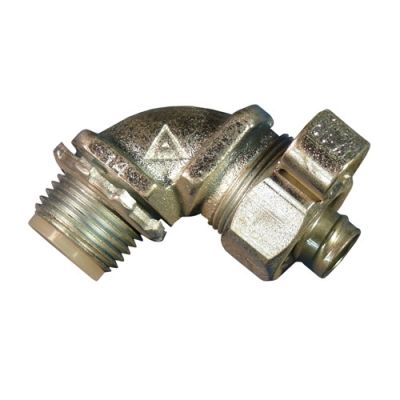

Appleton STB-9050L Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 1/2 in Trade, 14 to 4 AWG Cable Openings, 90 deg, Malleable Iron, Triple Coated
Liquidtite-Metallic Connectors
537652
STB9050L
Appleton
$0.00
/ ea
- Angle: 90
- Cable Openings: 14 to 4
- Dimensions: 1-1/4 in W
- Finish: Triple Coated
- Material: Malleable Iron
- Series: STB
- Suitable For Use With: Liquid Tight Flexible Metallic Conduit
- Trade Size: 1/2
- Type: Liquid Tight Oiltight Raintight
Appleton Conduit Connector, Liquid Tight Oiltight Raintight, Series: STB, 1/2 in, Cable Openings: 14 to 4 AWG, 90 deg, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Triple Coated, 1-1/4 in W
- Features
- Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
- Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
- Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection
- Full, machined tapered threads (NPT)
- Chromate/epoxy powder coated/zinc electroplated finish
