Appleton STNM-200

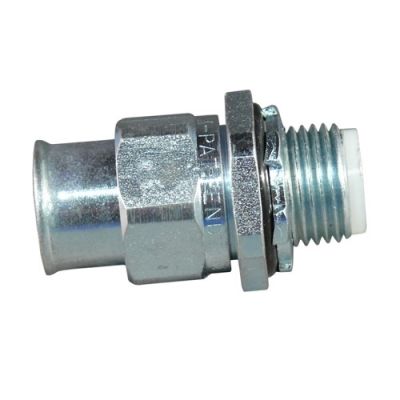

Appleton STNM-200 Conduit Connector With Insulated Throat, 2 in Trade, Straight, Steel
Liquidtite-Metallic Connectors
569046
STNM-200
Appleton
$0.00
/ ea
- Angle: Straight
- Dimensions: 3.97 in L x 3.38 in H
- Material: Steel
- Series: STNM
- Suitable For Use With: Type A Flexible Non-Metallic Conduit
- Trade Size: 2
Appleton Conduit Connector, Series: STNM, 2 in, Straight, For Use With: Type A Flexible Non-Metallic Conduit, Steel, 3.97 in L x 3.38 in H
- Features
- Eliminates common connection problems and assures a liquidtight seal against oil, water, dirt and chemicals
- The positive, pull out proof seal formed by a STNM connector begins with its deep threaded ferrule that bites into the inner wall of the conduit
- The sleeve separates the STNM series apart from ordinary connectors
- The sleeve is held captive within a compression nut that allows it to move freely and self align with the conduit having a slightly irregular surface or varying wall thickness
- The nut rides only on the sleeve and not on the conduit
- It cannot bend or twist the conduit and thereby protects wiring
- When fully tightened, the flared sleeve extends beyond the nut, providing additional protection from flexing
- Ease of assembly and disassembly of STNM connectors permits make up of harnesses in advance for fast, simple connections during production line assemblies
