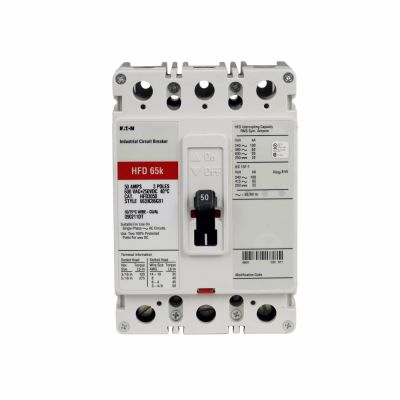

Eaton HFD3020L

EATON HFD3020L C Series Type HFD Molded Case Circuit Breaker, 600 VAC/250 VDC, 20 A, 100 kAIC at 240 VAC/65 kAIC at 480 VAC Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip
Circuit Breakers
532579 HFD3020L
Eaton
$0.00 / ea

Eaton HFD3020L
  • actuator type: Handle
  • Amperage Rating: 20
  • Connection Type: Line/Load
  • Dimensions: 3.38 x 4.13 x 6
  • Enclosure Type: NEMA AB1-1993
  • Frame: F
  • Frequency Rating: 50/60
  • Interrupt Rating: 100 kAIC at 240 VAC/65 kAIC at 480 VAC
  • Mounting Type: Panel
  • Number of Poles: 3
  • Phase: 3
  • Series: C Series
  • Temperature Rating: 40
  • Trip Type: Fixed Thermal/Fixed Magnetic
  • Type: Type HFD
  • Voltage Rating: 600 VAC/250 VDC
  • Wire size: 14 to 1/0
Eaton Series C complete molded case circuit breaker, F-frame, HFD, Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 20A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Line and load, 50/60 Hz
QTY
Add to Wishlist
  • Features
  • Patented contact design features high speed "blow-open" action, resulting in superior performance
  • Suitable for reverse feed applications
  • 100 kA at 240 VAC, 65 kA at 480 VAC interrupt rating
