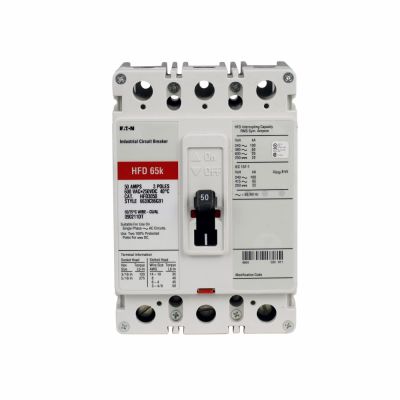

Eaton HFD3090BP10

EATON HFD3090BP10 C Series Type HFD Molded Case Circuit Breaker, 600 VAC/250 VDC, 90 A, 100 kAIC at 240 VAC/65 kAIC at 480 VAC Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip
Circuit Breakers
7552165 HFD3090BP10
Eaton
$0.00 / ea

Eaton HFD3090BP10
  • actuator type: Handle
  • Amperage Rating: 90
  • Connection Type: Load
  • Dimensions: 3.38 x 4.13 x 6
  • Frame: F
  • Frequency Rating: 50/60
  • Interrupt Rating: 100 kAIC at 240 VAC/65 kAIC at 480 VAC
  • Number of Poles: 3
  • Series: C Series
  • Temperature Rating: 40
  • Trip Type: Fixed Thermal/Fixed Magnetic
  • Type: Type HFD
  • Voltage Rating: 600 VAC/250 VDC
  • Wire size: 14 to 1/0
EATON Molded Case Circuit Breaker, Type HFD, Series: C Series, 600 VAC/250 VDC, 90 A, 50/60 Hz, 100 kAIC at 240 VAC/65 kAIC at 480 VAC Interrupt, F Frame, Fixed Thermal/Fixed Magnetic Trip, 3 Pole, Handle Actuator, Load, 14 to 1/0 AWG Wire, 40 deg C, 3.38 x 4.13 x 6 in
QTY
Add to Wishlist
  • Features
  • Patented contact design features high speed "blow-open" action, resulting in superior performance
  • Suitable for reverse feed applications
  • 100 kA at 240 VAC, 65 kA at 480 VAC interrupt rating
