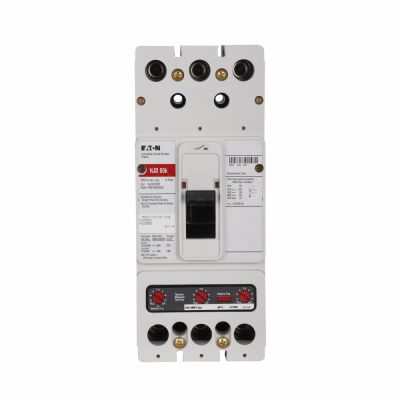

Eaton HJD3175W

EATON HJD3175W C Series Type HJD Molded Case Circuit Breaker, 600 VAC/250 VDC, 175 A, 100 kAIC at 240 VAC/65 kAIC at 480 VAC Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip
Circuit Breakers
7419108 HJD3175W
Eaton
$0.00 / ea

Eaton HJD3175W
  • Amperage Rating: 175
  • Dimensions: 4.06 x 4.13 x 4.13
  • Frame: J
  • Frequency Rating: 50/60
  • Interrupt Rating: 100 kAIC at 240 VAC/65 kAIC at 480 VAC
  • Number of Poles: 3
  • Series: C Series
  • Temperature Rating: 40
  • Trip Type: Fixed Thermal/Fixed Magnetic
  • Type: Type HJD
  • Voltage Rating: 600 VAC/250 VDC
  • Wire size: 4 AWG to 350 kcmil
Eaton Series C complete molded case circuit breaker, J-frame, HJD, Complete breaker, Fixed thermal, fixed magnetic trip, Three-pole, 175A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Without terminals, 50/60 Hz
QTY
Add to Wishlist
  • Features
  • Patented contact design features high speed "blow-open" action, resulting in superior performance
  • Suitable for reverse feed applications
  • Without terminals
  • 100 kA at 240 VAC, 65 kA at 480 VAC interrupt rating
