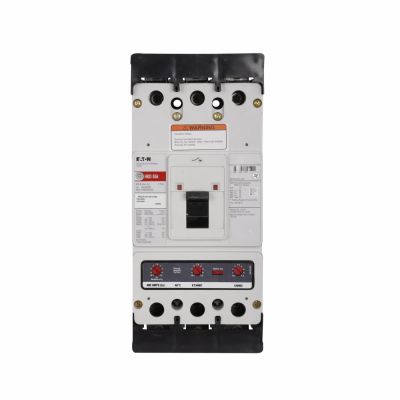

Eaton HKD3200

EATON HKD3200 C Series Type HKD Molded Case Circuit Breaker, 600 VAC/250 VDC, 200 A, 65 kAIC at 480 VAC/100 kAIC at 240 VAC Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip
Circuit Breakers
4289218 HKD3200
Eaton
$0.00 / ea

Eaton HKD3200
  • Amperage Rating: 200
  • Connection Type: Line/Load
  • Dimensions: 4.1 x 5.5 x 5.5
  • Frame: K
  • Frequency Rating: 50/60
  • Interrupt Rating: 65 kAIC at 480 VAC/100 kAIC at 240 VAC
  • Number of Poles: 3
  • Series: C Series
  • Temperature Rating: 40
  • Trip Type: Fixed Thermal/Fixed Magnetic
  • Type: Type HKD
  • Voltage Rating: 600 VAC/250 VDC
  • Wire size: 3 AWG to 350 kcmil
Eaton Series C complete molded case circuit breaker, K-frame, HKD, Fixed thermal, Fixed magnetic trip, Three-pole, 200 A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Aluminum, Line and load, 50/60 Hz
QTY
Add to Wishlist
  • Features
  • Patented contact design features high speed "blow-open" action, resulting in superior performance
  • Suitable for reverse feed applications
  • 100 kA at 240 VAC, 65 kA at 480 VAC interrupt rating
