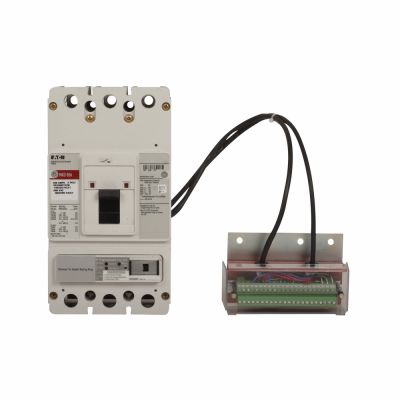

Eaton HKD3400T106W

EATON HKD3400T106W C Series Type HKD Molded Case Circuit Breaker, 600 VAC/250 VDC, 400 A, 100 kAIC at 240 VAC/65 kAIC at 480 VAC Interrupt, 3 Poles, Electronic LSIG Trip
Circuit Breakers
7394219 HKD3400T106W
Eaton
$0.00 / ea

Eaton HKD3400T106W
  • Amperage Rating: 400
  • Dimensions: 4.1 x 5.5 x 5.5
  • Frame: K
  • Frequency Rating: 50/60
  • Interrupt Rating: 100 kAIC at 240 VAC/65 kAIC at 480 VAC
  • Number of Poles: 3
  • Series: C Series
  • Temperature Rating: 40
  • Trip Type: Electronic LSIG
  • Type: Type HKD
  • Voltage Rating: 600 VAC/250 VDC
  • Wire size: 3/0 AWG to 250 kcmil
Eaton Series C electronic molded case circuit breaker, K-frame, HKD, Complete breaker, OPTIM 1050, Electronic LSIG trip, Three-pole, 400A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Without terminals, 50/60 Hz
QTY
Add to Wishlist
  • Features
  • Patented contact design features high speed "blow-open" action, resulting in superior performance
  • Suitable for reverse feed applications
  • Without terminals
  • 100 kA at 240 VAC, 65 kA at 480 VAC interrupt rating
