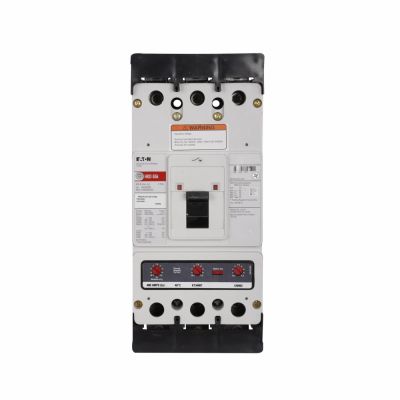

Eaton HKDB3250FT36W

EATON HKDB3250FT36W C Series Type HKDB Molded Case Circuit Breaker, 600 VAC/250 VDC, 250 A, 65/100 kA Interrupt, 3 Poles, Electronic LSIG Trip
Circuit Breakers
7678599 HKDB3250FT36W
Eaton
$0.00 / ea

Eaton HKDB3250FT36W
  • Amperage Rating: 250
  • Dimensions: 4.1 x 5.5 x 5.5
  • Enclosure Type: NEMA AB1-1993
  • Frame: K
  • Frequency Rating: 50/60
  • Interrupt Rating: 65/100
  • Number of Poles: 3
  • Phase: 3
  • Series: C Series
  • Trip Type: Electronic LSIG
  • Type: Type HKDB
  • Voltage Rating: 600 VAC/250 VDC
EATON Molded Case Circuit Breaker, Type HKDB, Series: C Series, 600 VAC/250 VDC, 250 A, 50/60 Hz, 65/100 kA Interrupt, K Frame, Electronic LSIG Trip, 3 Pole, 3 ph, NEMA AB1-1993, 4.1 x 5.5 x 5.5 in
QTY
Add to Wishlist
  • Features
  • Patented contact design features high speed "blow-open" action, resulting in superior performance
  • Circuit breakers significantly outperform the calculations listed in the institute of electrical and electronic engineers (IEEE) standard 1584, guide for performing arc flash hazard calculations
  • Without terminals
  • 100 kA at 240 VAC, 65 kA at 480 VAC interrupt rating
