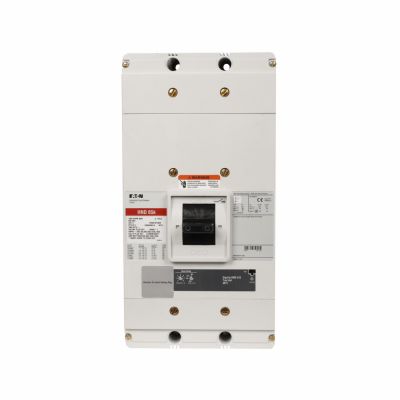

Eaton HND312T106W

EATON HND312T106W G Series Type HND Molded Case Circuit Breaker, 600 VAC, 1200 A, 100 kAIC at 240 VAC/65 kAIC at 480 VAC Interrupt, 3 Poles, Electronic LSIG Trip
Circuit Breakers
7311747 HND312T106W
Eaton
$0.00 / ea

Eaton HND312T106W
  • Amperage Rating: 1200
  • Dimensions: 5-1/2 x 8-1/4 x 8-1/4
  • Frame: NG
  • Frequency Rating: 50/60
  • Interrupt Rating: 100 kAIC at 240 VAC/65 kAIC at 480 VAC
  • Number of Poles: 3
  • Series: G Series
  • Temperature Rating: 40
  • Trip Type: Electronic LSIG
  • Type: Type HND
  • Voltage Rating: 600
  • Wire size: 4/0 AWG to 500 kcmil
Eaton Series C electronic molded case circuit breaker, NG-frame, HND, Complete breaker, OPTIM 1050, Electronic LSIG trip type, Three-pole, 1200A, 600 Vac, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Without terminals, 50/60 Hz
QTY
Add to Wishlist
  • Features
  • Patented contact design features high speed "blow-open" action, resulting in superior performance
  • Suitable for reverse feed applications
  • OPTIM 1050 design circuit breaker
  • Without terminals
  • 100 kA at 240 VAC, 65 kA at 480 VAC interrupt rating
