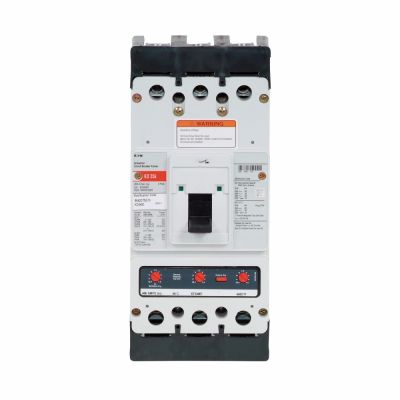

Eaton KD3400A01

EATON KD3400A01 C Series Type KD Molded Case Circuit Breaker, 600 VAC/250 VDC, 400 A, 35 kAIC at 480 VAC/65 kAIC at 240 VAC Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip
Circuit Breakers
7723723 KD3400A01
Eaton
$0.00 / ea

Eaton KD3400A01
  • Amperage Rating: 400
  • Auxiliary Contact Rating: 1A-1B
  • Connection Type: Line/Load
  • Dimensions: 4.1 x 5.5 x 5.5
  • Frame: K
  • Frequency Rating: 50/60
  • Interrupt Rating: 35 kAIC at 480 VAC/65 kAIC at 240 VAC
  • Material: Glass Polyester
  • Number of Poles: 3
  • Series: C Series
  • Trip Type: Fixed Thermal/Fixed Magnetic
  • Type: Type KD
  • Voltage Rating: 600 VAC/250 VDC
EATON Molded Case Circuit Breaker, Type KD, Series: C Series, 600 VAC/250 VDC, 400 A, 50/60 Hz, 35 kAIC at 480 VAC/65 kAIC at 240 VAC Interrupt, K Frame, Fixed Thermal/Fixed Magnetic Trip, 3 Pole, Line/Load, 1A-1B Auxiliary, 4.1 x 5.5 x 5.5 in, Glass Polyester
QTY
Add to Wishlist
  • Features
  • Patented contact design features high speed "blow-open" action, resulting in superior performance
  • 65 kA at 240 VAC, 35 kA at 480 VAC interrupt rating
