Eaton MD63E92

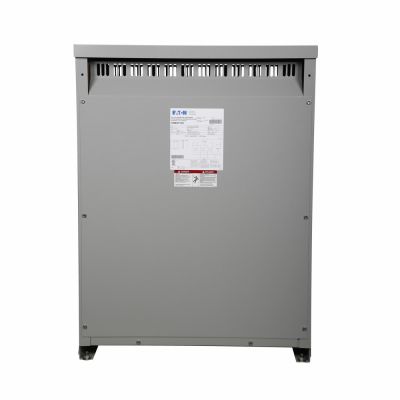

EATON MD63E92 MD Series Type DT-3 Dry Ventilated Motor Drive Isolation Transformer, 460 Delta VAC Primary, 460Y/266 VAC Secondary, 63 kVA Power Rating, 60 Hz, 3 ph Phase
Transformers
6919363
MD63E92
Eaton
$0.00
/ ea
- Circuit Type: 914D Frame
- Connection Type: Lug
- Dimensions: 22 in L x 29 in W x 39 in H
- Enclosure Type: NEMA 2
- Frequency Rating: 60
- Housing Material: Steel
- Mounting Type: Threaded
- Number of Taps: 2
- Phase: 3
- Power Rating: 63
- Primary Voltage: 460 Delta VAC
- Secondary Voltage: 460Y/266 VAC
- Series: MD Series
- Temperature Rating: 150
- Type: Type DT-3 Dry Ventilated
Drive Isolation Transformer, Ventilated, Dry Type Distribution, DT-3, Three-phase, PV: 460 delta, Taps: 1 at +5% FCAN, 1 at -5% FCBN, SV: 460Y/266V, 150пїЅC, 63 kVA, Al windings, Frame: 914D, uses WS39
- Features
- Thermal sensors embedded in coils can be wired to provide a signal to remote locations, indicating potential heating problems within the transformer coils
- Get fast and easy connection with front accessible primary and secondary terminals
- Easily identify terminals with clear labeling
- Reduce installation time with slotted screw mounting holes in enclosure and cover
- Reduce noise levels to meet NEMA ST-20 with sound dampening pads that isolate the core and coil from the case
- Short term overload capability as required by ANSI
- Core laminations of precision sheared silicon steel are hand stacked to ensure quiet operation
- Terminations are clearly marked for easy identification
- 3-phase transformers have one 5% full capacity tap above and below nominal voltage for incoming source adjustment
- Full current neutral
- Thermoguard protection embedded in coils of 3-phase models to indicate that high temperatures (approximately 190 deg C) are present
- Three coil delta-wye configurations are used throughout the product line
- Aluminum windings
- 1 at +5% FCAN, 1 at -5% FCBN taps
