Leviton 3KUMT-1M

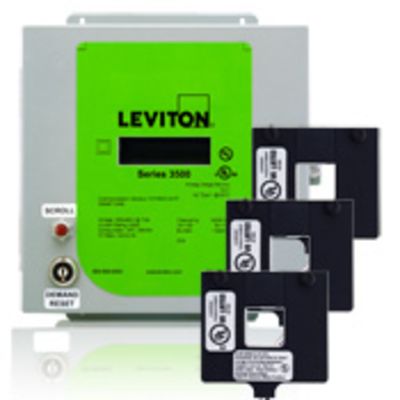

Leviton VerifEye 3KUMT-1M 3500 3/4-Wire Multi-Function Universal Voltage Split Meter Kit, 208 to 480 VAC, 177 to 552 VAC, 0.11/100 A
Transformers
7406001 3KUMT-1M
Leviton
$0.00 / ea

  • Amperage Rating: 0.11/100
  • Dimensions: 8.21 in L x 2.5 in W x 9.66 in H
  • Display Type: LCD
  • Enclosure Type: NEMA 1
  • Material: Steel
  • Phase: 3
  • Series: 3500
  • Type: 3/4-Wire Multi-Function Universal Voltage Split
  • Voltage Rating: 208 to 480 VAC, 177 to 552 VAC
3500 Series Indoor Type Modbus TCP / Bacnet IP Unerversal Voltage 208-480 VAC 100A Split Core CTS 3 Phase 3W/4W Meter Kits cts Included Multi-Function
  • Features
  • Integrates easily with building management systems
  • Delivers universal voltage performance
  • Outputs kWh, demand instant and peak, per phase and total kWh, kW, kVAR, VAR, amps interval data
  • Utilizes split and solid core current transformers that are certified to all revenue grade accuracy standards
  • Up to 3-sets of current transformers per phase can be paralleled per meter
  • Use with split core or solid core current transformers, installation diagnostics
  • Installation diagnostics, low voltage detection
  • Real time clock with battery backup for TOU reading, load profile
  • -20 to 50 deg C display temperature
  • 18 to 14 AWG terminal accommodation
  • Revenue grade accuracy 0.5% accuracy class
