Stahlin DSCC121006HLL

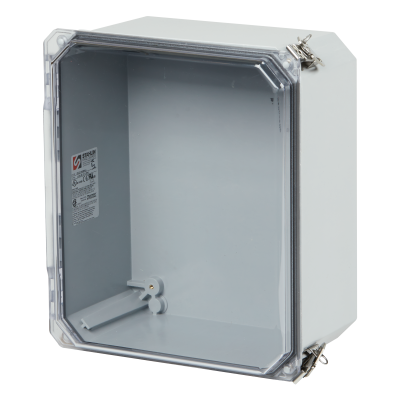

Stahlin DSCC121006HLL DiamondShield trade; HLL Configuration Enclosure, 10 in W x 6 in D x 12 in H, NEMA 1/3/3S/4X/12/13, Fiberglass Reinforced Polyester
Enclosures Non-Metallic
5210219 DSCC121006HLL
Stahlin
$0.00 / ea

Stahlin DSCC121006HLL
  • Color: Glacier Gray
  • Cover Type: Clear Hinged
  • Depth: 6
  • Finish: Smooth
  • Height: 12
  • Lock: (2) Lockable Link Latch
  • Material: Fiberglass Reinforced Polyester
  • Nema Rating: NEMA 1/3/3S/4X/12/13
  • Panel Size: 8.88 in W x 10.88 in H
  • Series: DiamondShield™
  • Temperature Rating: -76 to 274
  • Type: HLL Configuration
  • Width: 10
The Diamondshield Series was developed for design flexibilty. Applications include high-end electronics, harsh corrosive environments and industrical applications both indoors and outdoors.
QTY
Add to Wishlist
  • Features
  • Sleek design allowing you to use maximum internal space
  • Maximum visibility to raised panels and control devices
  • High temperature, flame retardant, non-corrosive and environmental designs
  • Stands up to an exceptionally broad range of chemical exposures
  • Results in an environmentally sealed, environmentally sound space
  • High impact resistance
  • Double insulated material, no incidental electrical contact
  • Solid construction in a lightweight design
  • UV-resistant
