nVent Hoffman PDS226

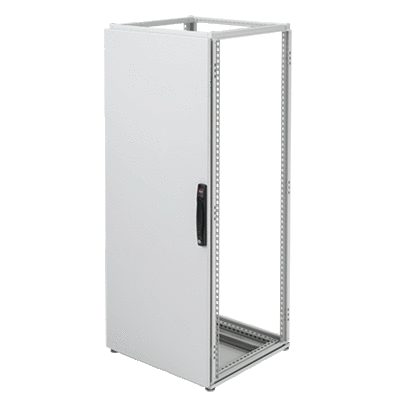

Hoffman ProLine™ PDS226 P20 Solid Door, 2139 mm H x 592 mm W x 18 mm D, For Use With ProLine™ 2200 mm H x 600 mm W Frames, Steel
Enclosure Box Hardware and Accessories
7053939
PDS226
nVent Hoffman
$0.00
/ ea
- Color: Light Gray
- Depth: 18
- Door Handle: Flush Bezel
- Door Latching: 3-Point
- Finish: Polyester Powder Painted
- Height: 2139
- Material: Steel
- Series: P20
- Suitable For Use With: ProLine™ 2200 mm H x 600 mm W Frames
- Width: 592
Solid Doors, fits 2200x600mm, Painted
- Features
- Steel doors are finished in RAL 7035 textured light-gray polyester powder paint
- EMC doors are finished with paint over plated surfaces
- Hinge side is reversible
- A flush bezel latch operates the 3-point latching system
- The use of a side door adapter or a cable entry cabinet allows doors to be attached to the sides of the enclosure frame
- Hinges have easy slide retained hinge pins
- Door gasket is foam in place urethane to provide a resilient, seamless seal
