nVent Hoffman PF18106
Hoffman ProLine™ PF18106 P20 Single-Bay Frame, 1800 mm H x 1000 mm W x 600 mm D, For Use With ProLine™ Modular Enclosures, Steel
Enclosure Box Hardware and Accessories
6958697
PF18106
nVent Hoffman
$0.00
/ ea
- Color: Light Gray
- Depth: 600
- Finish: Polyester Powder Painted
- Height: 1800
- Material: Steel
- Series: P20
- Suitable For Use With: ProLine™ Modular Enclosures
- Width: 1000

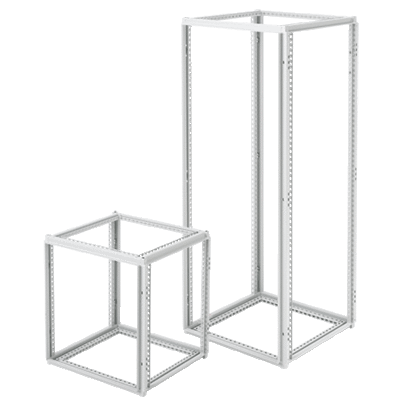

Single-Bay Frames, 1800x1000x600
- Features
- Welded corners with steel corner blocks that add strength and rigidity
- 12 ga, roll formed frame sections for strength
- Flange on door and side openings deflect liquids away from the enclosure interior
- Rectangular frame holes are designed for metric cage nut fasteners
- Round frame holes allow numerous grounding locations using M5 thread forming screws
- Access to both sides of frame mounting holes allows standard components to be easily installed
- Provisions for slide in subpanel, rack mounting and accessory mounting
- Simple means for joining frames to create multiple bay enclosures
- An open roll formed profile design affords complete surface corrosion protection and assembly access
- Sealed mounting for all external accessories
